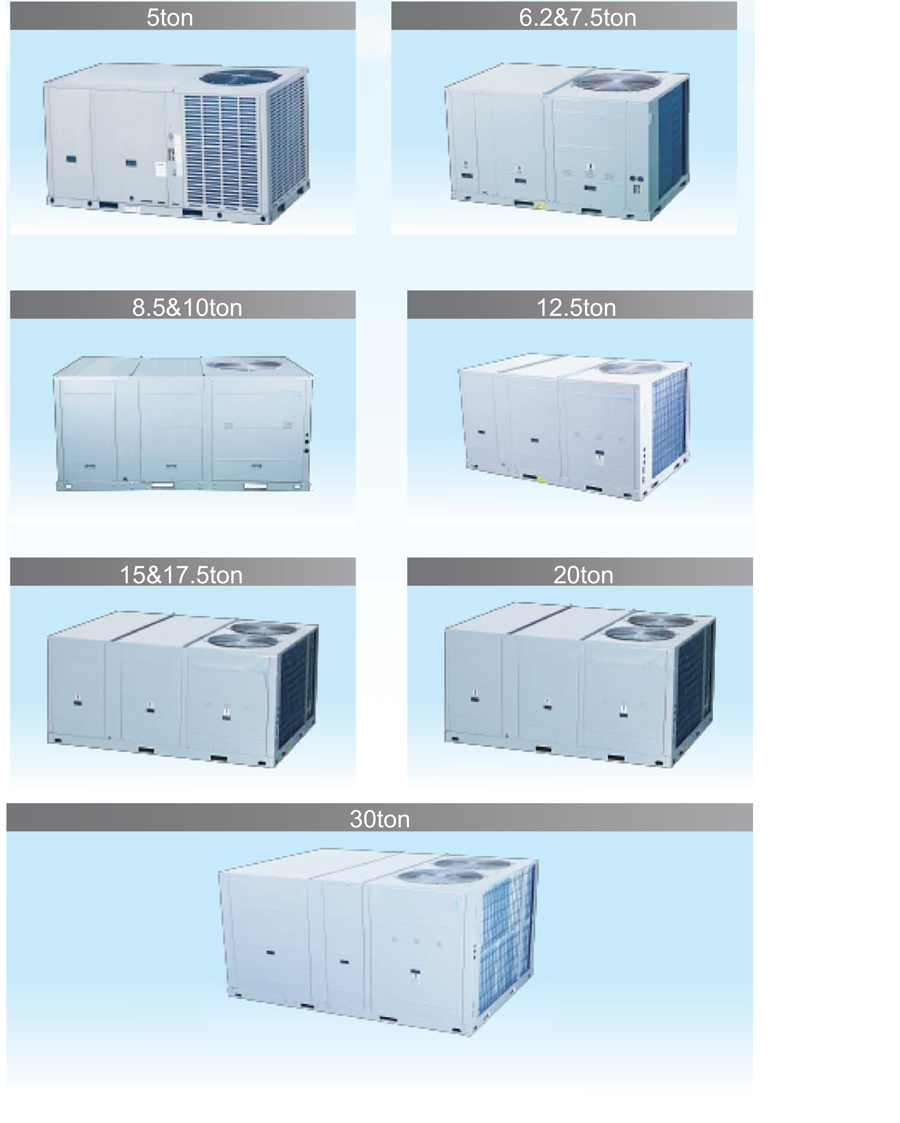

product model

Capacity Range


6 - 36HP
Refrigerant: R-410a

Wide range operating temperature


Cooling mode operation, ambient temperature range is 18˚C to 52˚C

Excellent efficiency


High efficiency scroll compressor.
High EER.

Design flexibility


Rooftop or ground is optional for installation.
Anywhere removable as requirement without fixed.

Easy to install, service and maintain


Installer no need to enter inside of the door, only out-of-doors.
Compact size and integrated indoor unit and outdoor unit, save the transportation, lifting and installation cost.
Most components are standard.
Heat exchanger is easy for clean and maintenance.
A complete factory running test is performanced on each unit without any potential start up problem.

Durable construction


Pre-painted exterior cabinet panels pass 1000-hour Salt Spray Test for durability.
Weather-resistant construction with capped seams and sloped top panels.
G90 galvanized heavy gauge plate conforming to ASTM-A-653, Zinc content of galvanized plate is 275 g/m2.

External pressure gauge ports


To external pressure gauge ports, which are permanently identified embossed wording that clearly identifies the compressor circuit, high pressure connection and low pressure connection. With the gauge ports mounted externally, an accurate diagnostic of system operation can be performed quickly and easily without disrupting airflow.
